Cub Cadet Ultima ZTXS4 54 Zero-Turn Mower with Synchro-Steer, 54-Inch Deck, 24 HP Kohler (47TSCAB7A10)

$1,949.30 USD

SKU: DV-ZT-030 Category:
Description

ZTXS4 54

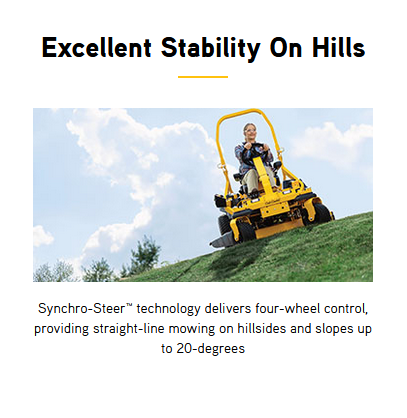

  • Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
  • A 24 HP* Kohler Pro 7000 Series KT735 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
  • Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
  • A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
Engine
  • Engine Brand: Kohler®
  • Engine Model: Pro 7000 series
  • Engine Model Number: ZT735-3088
  • Engine Displacement: 725cc
  • Engine Output: 24HP
  • Starter Type: Electric
  • Fuel Tank Capacity: 5.5 gal. US
  • Cylinders: Twin
  • Engine Start: Ignition Key
  • Engine Oil Capacity: 2 qt US
  • Lubrication: Fully pressurized
  • Charging System: 12 amp regulated
  • Fuel Gauge: Yes
  • Governor: Mechanical
  • Choke: Choke-a-matic
  • Air Filter: Dual element
  • Oil Filter: Yes
  • Fuel Delivery: Carburetor
Battery
  • Battery: 210 CCA
  • Battery Type: AGM (Absorbent Glass Mat)
  • Battery Voltage: 12V
Drive System
  • Transmission: Hydro-Gear ZT 3100
  • Forward Speed: 8.5 MPH
  • Reverse Speed: 3.5 MPH
  • Drive System: Hydrostatic

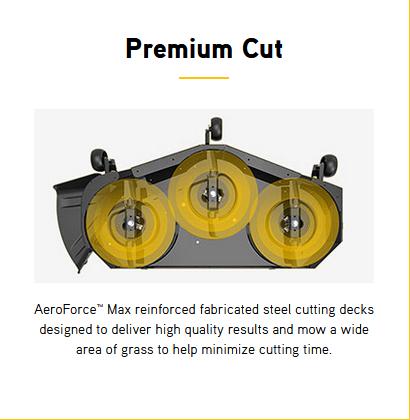

Cutting Deck
  • Deck Cutting Width: 54 in
  • Deck Wash: No
  • Deck Material: 10-gauge steel with 2-gauge reinforcement
  • Deck Engagement (PTO): Electric
  • Deck Construction: Fabricated
  • Blade(s): Three
  • Deck Lift: Foot pedal with Dial Adjust
  • Cutting Height Range: 1″ – 4.75″
  • Anti-Scalping: Three gauge wheels
  • Deck Positions: 17
Warranty
  • Warranty: 4-year 800 hours
  • Frame Warranty: Lifetime Limited
  • Deck Shell Warranty: Lifetime limited
  • Commercial Warranty: 4-year 800 hours
Chassis
  • Frame: 1.5″ x 3″ tubular steel
  • Turning Radius: 0°
  • ROPS: Yes
  • Rear Tow Hitch: Yes
  • Corrosion Protection: Yes
Controls
  • Cruise Control: No
  • Brakes: Disc
  • Steering Control: Steering Wheel
Comfort
  • Seat Type: 20″ high back
  • Armrests: Yes
  • Seat Adjustment: Lever
Wheels
  • Rear Tires: 22″x 12″-12″
  • Front Tires: 13″x 6.5″-6″
  • Tire Tread: Turf Master / Multi Trac
Additional Specifications
  • Hour Meter: Yes
  • Mulch Kit: Available separately
  • Headlight(s): Dual-LED
  • Cup Holder: Yes
  • Operator Presence System: Yes
  • Parking Brake: Foot Controlled
  • Model Number: 47RSCAB7A10
Specifications
  • Series Ultima Series™ ZTXS
AIR FILTER: 32 883 13-S1 OR 490-200-K064
OIL FILTER: 52 050 02-S
FUEL FILTER: 24 050 13-S1
SPARK PLUG: 25 132 23-S
PTO BELT: NA
DECK BELT: 954-04329A
DRIVE BELT: 954-04317A
TRANS FILTER: HG-52114P
BLADES: 742P05533
XTREME BLADES: 01005380P-X
IGNITION KEY: 925-1745A
ENGINE OIL: 25 367 65-S
Additional information
Brand

Cub Cadet
