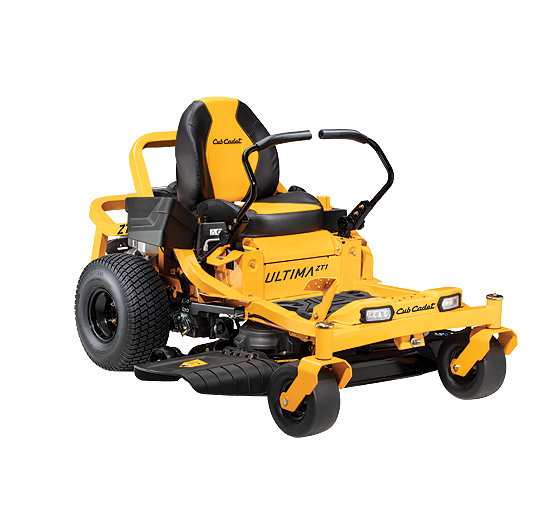

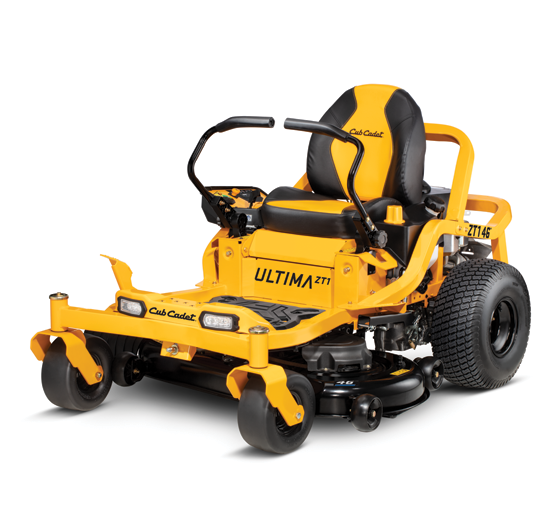

ZT1 46
- A 21.5 HP/726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
- A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
Engine
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Engine Model Number: 651V
- Engine Displacement: 726cc
- Engine Output: 21.5HP
- Starter Type: Electric
- Fuel Tank Capacity: 3.5 gal. US (13.25 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 2.0 qt. US (1.89 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Separate Choke
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 210 CCA
- Battery Type: AGM (Absorbent Glass Mat)
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear EZT 2200
- Forward Speed: 7 MPH / 11.3 km/h
- Reverse Speed: 3.5 MPH / 5.6 km/h
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting: Width 46″
- Deck Wash: No
- Deck Material: 11-gauge steel
- Deck Engagement: (PTO) Electric
- Deck Construction: Fabricated
- Blade(s): 2
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1” – 4.5”
- Anti-Scalping: 2 gauge wheels
- Deck Positions: 15
Warranty
- Warranty: 3-year unlimited hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: No
Chassis
- Frame: 2” x 2” tubular steel
- Turning Radius: 0°
- ROPS: No
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Lap Bars
Comfort
- Seat Type: 20″ high back
- Armrests: No
- Seat Adjustment: Knob
- Front Caster Suspension: No
Wheels
- Rear Tires: 20”x 8”-8″
- Front Tires: 11″x 6″-5″
- Tire Tread: Turf Master / Multi Trac
Additional Specifications
- Hour Meter: No 490-900-C075
- Mulch Kit: Available separately
- Headlight(s): Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Lap Bar Integrated
- Model Number: 17AIEACNA10, 17RIEACN010
- AIR FILTER:KM-11013-0752
- OIL FILTER:KM-49065-0721
- ENGINE OIL: 490-000-C044
- FUEL FILTER: KM-49019-0031
- SPARK PLUG:KM-BPR4ES
- DECK BELT: 754P06135 OR 490-501-C082
- DRIVE BELT: 954-04317A
- BLADES : 742P05510 OR SET 490-110-C192
- XTREME BLADES: 742P05510-X OR SET 490-110-C203
- IGNITION KEY: 925-1745A
- HOUR METER KIT: 490-900-C075
